BMT.3200.IR
TITANIUM SLIDING PANELS SAW
TITANIUM SLIDING PANELS SAW is available to buy in increments of 1

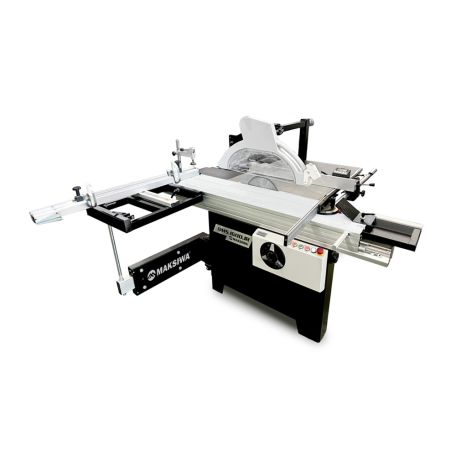

The Maksiwa BMT.3200.IR Titanium Sliding Panel Saw is extremely durable and incredibly smooth to operate. From the first drawing until the final product our engineering team had as one of their main objectives produce the most advanced Sliding Panel Saw in its category. Maksiwa always use superior components and materials to deliver the absolute best machines to you.
Main Motor 5 HP / 4000 RPM 3.7 kw 5 HP / 4000 RPM 3.7 kw Max Blade Diameter 12" 305 MM Main Blade Arbor 1 3/16 " 30 MM Main Blade Max cutting Height at 90° 3 1/2" 90 MM Main Blade Cutting Height at 45° 2 7/16" 63 MM Scoring Motor 3/4 HP / 8000 RPM .55 kw 3/4 HP / 8000 RPM .55 kw Scoring Motor Blade 4 3/4" 120 MM Scoring Blade Arbor 3/4" 20 MM Scoring Blade Type Conical Conical Max Ripping Capacity 51" 1300 MM Crosscut Capacity 126 " 3200 MM Crosscut Fence Capacity Closed/Open 78"/120" 1981/ 3048 MM Machine Working Dimensions (LxWxH) 132" x 137" x 65" 3352 x 3479 x 1651 MM Cast Iron Table Dimension 35 " x 21 " 896 x 548 Sliding Table Dimension 126" x 14" 3200 x 358 MM Dust Collection Port (2) 4" 100 MM Minimum Dust Collection Requirements 1000 CFM 28M/MIN Electrical Specs 1 Phase 220V 30 Amps 60 Hz 1 Phase 220V 30 Amps 60 Hz Main Body Crate Dimensions (LxWxH) 83" x 45" x 45" 2108 x 1143 x 1143 MM Main Body Crate Weight 1254 Lbs 569 Kgs Sliding Table Crate Dimensions (LxWxH) 133" x 18" x 15" 3378 x 457 x 381 MM Sliding Table Crate Weight 274 Lbs 124 Kgs
More Information
Brand
MAKSIWA
This product is available.
This product is available for delivery.
