Imeca Search Key
BMS 1600 IR

SLIDING PANEL SAW 1600 . 1 PHASE 5HP 220V

$9,420.25

In Stock This product is available.

Shipping Available This product is available for delivery.

SLIDING PANEL SAW 1600 . 1 PHASE 5HP 220V is available to buy in increments of 1

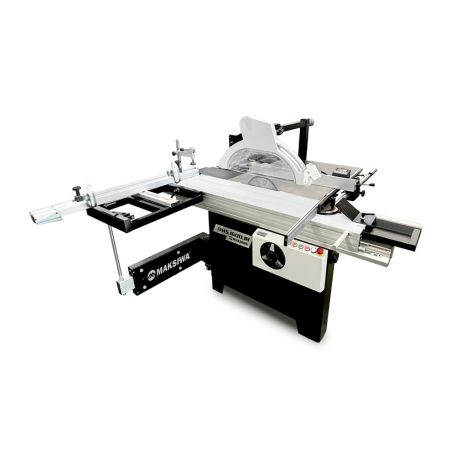

Introducing the New BMS.1600.IR. The BMS series is one of Maksiwa’s top seller sliders that has been completely redesigned from the ground up with improved construction and materials. The new design is more ergonomic and features a more powerful 1HP scoring motor, Digital Rip Fence Readout, adjustable leveling feet, dual blade covers, two flip stops, integrated dust collection exhaust on a swing-away arm, and new soft touch buttons and control panel.


Main Motor5 HP 4000 RPM 3.7 Kw
Max Blade Diameter12" | 305mm
Main Blade Arbor30mm
Main Blade Max Cutting Height at 90º3 1/2"
Main Blade Max Cutting Height at 45º2 1/2"
Scoring Motor1 HP 8000 RPM .74Kw
Scoring Motor Blade4 3/4" | 120mm
Scoring Blade Arbor3/4"
Scoring Blade TypeConical
Max Ripping Capacity35 1/2" | 900mm
Crosscut Capacity63"
Crosscut fence max. (Closed/Open)48" / 80"
Machine Working Dimension (LxWxH)79" x 115" x 66"
Sliding Table Dimension63" x 12"
Cast Iron Table dimension (LxWxH)32 1/2" x 21" x 35 1/2"
Max Tilt45º
Dust Collection Port4"
Electrical Specs1 PH 220V 30 Amps 60Hzs
Weight1000 lbs
More Information
Brand MAKSIWA
